183. 管道与多线程

发表于 2023-11-05 更新于 2025-03-28 分类于 c/c++

管道是什么? 如何使用管道进行线程间通信?

管道

使用方法

1
2
3

#include <unistd.h>

int pipe(int fildes[2]);

The pipe function creates a communication buffer that the caller can access through the file descriptors fildes[0] and fildes[1]. The data written to fildes[1] can be read from fildes[0] on a first-in-first-out basis.

最简单的UNIX进程间通信机制
管道是一种特殊的文件
pipe函数创建一个通信缓冲区,程序可以通过文件描述符fildes[0]和fildes[1]来访问这个缓冲区
写入fildes[1]的数据可以按照先进先出的顺序从fildes[0]中读出
如果成功则返回0。否则返回-1,并设置errno

使用 close() 关闭管道

// 关闭读管道
close(pfd[0]);
// 关闭写管道
close(pfd[1]);

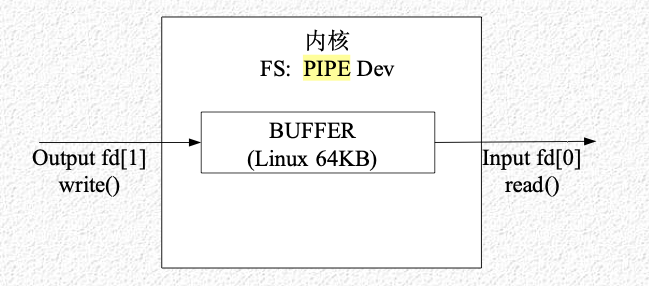

PIPE初始化

PIPE 设备文件系统分配 inode
分配读写两个文件表项,分配两个文件描述符,设置相关引用计数
使用直接快作为BUFFER缓冲写入数据
循环数组方式使用BUFFER

使用

使用 read 和 write 对管道进行读写.

读管道

示例

int pfd[2];
if (pipe(pfd) < 0) {
    cout << "ERROR: failed to create the pipe." << endl;
}

ssize_t n = read(pfd[0], buffer, bufferSize);read(pfd[1], buf, size);

注意

条件	状态
管道读写端都未关闭(未调用`close()`函数) && 管道中有数据	成功读出数据 && 返回值为读出的字节数
管道读写端都未关闭(未调用`close()`函数) && 管道中无数据	阻塞
管道读端关闭(`close(pfd[0])`) && 管道中有数据	return -1
管道读端关闭(`close(pfd[0])`) && 管道中无数据	return -1
管道写端关闭(`close(pfd[1])`) && 管道中有数据	成功读出数据 && 返回值为读出的字节数
管道写端关闭(`close(pfd[1])`) && 管道中无数据	reutrn 0

写管道

int pfd[2];
if (pipe(pfd) < 0) {
    cout << "ERROR: failed to create the pipe." << endl;
}

write(pfd[1], buffer, bufferSize);

管道与多线程的关系

在Linux和类Unix系统中，读写管道不需要加锁的原因是因为管道本身是一个原子性的操作，只有一个写入端和一个读取端。由于管道的设计和操作是线性的，不会有多个写入端或读取端同时操作同一个管道。

在多进程或多线程环境中，多个进程或线程可以同时读取或写入管道，但这些操作不会导致数据竞争或并发问题，因为操作系统确保了管道的原子性。每次写入或读取操作都是原子的，不会中断或影响其他操作。这是因为操作系统会在内核层面对管道进行适当的同步和管理，以确保数据的一致性和完整性。

使用管道进行多线程之间的信息传递, 由于管道自带了锁, 因此不需要加锁. 同时, 管道中的阻塞现象, 也可以避免使用信号量进行同步.

实例

#include <cstddef>
#include <cstdint>
#include <cstring>
#include <ctime>
#include <iostream>
#include <pthread.h>
#include <sys/types.h>
#include <unistd.h>
#include <fcntl.h>

using namespace std;

#define BLOCK_SIZE 1024
#define READER_COUNT 20
#define WRITER_COUNT 10

// 管道描述符
int pfd[2];

int infileFd;
int outfileFd;

class Buffer {
public:
    off_t offset;
    ssize_t dataLength;
    char data[BLOCK_SIZE];
};

class ThreadArgs {
public:
    uint32_t id;
};

void *readerFunc(void *args) {
    if (args == NULL) {
        cout << "ERROR: args is NULL" << endl;
        return NULL;
    }
    ThreadArgs *tArgs = (ThreadArgs *)args;

    Buffer *buffer = NULL;

    int epoch = 0;
    while (1) {
        buffer = new Buffer;
        memset(buffer, 0, sizeof(*buffer));
        ssize_t blockSize = sizeof(buffer->data);
        buffer->offset = (tArgs->id + epoch * READER_COUNT) * blockSize;
        buffer->dataLength = pread(infileFd, buffer->data, blockSize, buffer->offset);
        if (buffer->dataLength == 0) {
            delete buffer;
            printf("INFO: thread %d finish to read the infile\n", tArgs->id);
            break;
        } else if (buffer->dataLength < 0) {
            printf("WARNING: thread %d failed to read infile\n", tArgs->id);
        } else {
            write(pfd[1], &buffer, sizeof(Buffer *));
            ++epoch;
        }
    }
    pthread_exit(NULL);
}

void *writerFunc(void *args) {
    if (args == NULL) {
        cout << "ERROR: tArgs is NULL" << endl;
        return NULL;
    }
    ThreadArgs *tArgs = (ThreadArgs *)args;

    Buffer *buffer = NULL;

    while (1) {
        int ret = read(pfd[0], &buffer, sizeof(Buffer *));
        if (ret < 0) {
            printf("ERROR: thread %d failed to read pipe error.\n", tArgs->id);
        } else if (ret == 0) {
            printf("INFO: thread %d pipe is empty, quiting\n", tArgs->id );
            break;
        } else {
            pwrite(outfileFd, buffer->data, buffer->dataLength, buffer->offset);
            delete buffer;
        }
    }
    pthread_exit(NULL);
}

int main(int argc, char **args) {

    clock_t startTime = clock();
    clock_t finishTime;

    if (argc != 3) {
        cout << "ERROR: please enter the infile and outfile." << endl;
        return 0;
    }

    if (pipe(pfd) < 0) {
        cout << "ERROR: failed to create the pipe." << endl;
    }

    if ((infileFd = open(args[1], O_RDONLY)) < 0) {
        cout << "failed to open infile" << endl;
        return -1;
    }
    if ((outfileFd = open(args[2], O_RDWR)) < 0) {
        cout << "failed to open outfile" << endl;
        return -1;
    }

    pthread_t readerHandles[READER_COUNT];
    ThreadArgs readerArgs[READER_COUNT];
    pthread_t writerHandles[WRITER_COUNT];
    ThreadArgs writerArgs[WRITER_COUNT];

    for (int i = 0; i < READER_COUNT; ++i) {
        readerArgs[i].id = i;
        if (pthread_create(readerHandles + i, NULL, readerFunc, readerArgs + i) != 0) {
            cout << "ERROR: failed to create reader thread " << i << endl;
        }
    }

    for (int i = 0; i < WRITER_COUNT; ++i) {
        writerArgs[i].id = i;
        if (pthread_create(writerHandles + i, NULL, writerFunc, writerArgs + i) != 0) {
            cout << "ERROR: failed to create writer thread " << i << endl;
        }
    }

    for (int i = 0; i < READER_COUNT; ++i) {
        if (pthread_join(readerHandles[i], NULL) != 0) {
            cout << "ERROR: failed to join reader thread " << i << endl;
        }
    }

    // 读者向管道写入数据
    close(pfd[1]);

    for (int i = 0; i < WRITER_COUNT; ++i) {
        if (pthread_join(writerHandles[i], NULL) != 0) {
            cout << "ERROR: failed to join reader thread " << i << endl;
        }
    }

    // 写者从管道读取数据
    close(pfd[0]);

    // 关闭文件描述符
    close(infileFd);
    close(outfileFd);

    finishTime = clock();
    printf("spend time %f seconds\n", (double)(finishTime - startTime) / CLOCKS_PER_SEC);

    return 0;
}
